500Kwh Lifepo4 Battery Industrial and Commercial Energy Storage
500Kwh Lifepo4 Battery Industrial and Commercial Energy Storage
500Kwh Lifepo4 Battery Industrial and Commercial Energy Storage
500Kwh Lifepo4 Battery Industrial and Commercial Energy Storage

500Kwh Lifepo4 Battery Industrial and Commercial Energy Storage

High performance:The annual stable operation efficiency is 90%

Long Life:Core component life >15 years 8000 cycle life

High Safety:IEC 62619、IEC 63056、IEC 62477 IEC 61000、IEC60730

Intelligent:24/7 operation and maintenance, remote operation and maintenance, unattended automatically adjust the control strategy according to the load

Easy Expansion:A single cabinet covers an area of <3 square meters, flexible placement, 1-2 days to complete the adjustment operation



  • ماركة :

    UE
  • ضمان :

    15 year
  • شهادة :

    IEC 62619、IEC 63056、IEC 62477 IEC 61000、IEC60730
  • دورة الحياة :

    8000+

energy storage

Key Values of Our Commercial & Industrial Energy Storage System

  • Economic Efficiency: Reduces electricity costs by storing energy when prices are low and discharging when demand or prices rise.
  • Grid Stability: Enhances grid reliability by balancing loads and regulating frequency.
  • Maximized Renewable Energy Use: Stores solar or wind energy for optimized self-consumption and reduced grid dependence.
  • Reliable Backup Power: Ensures uninterrupted operations during outages.

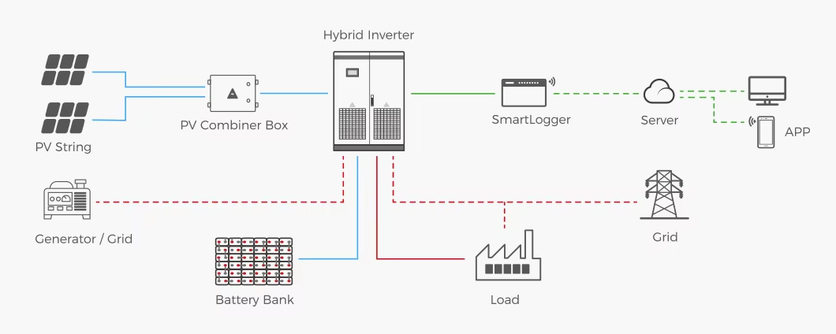

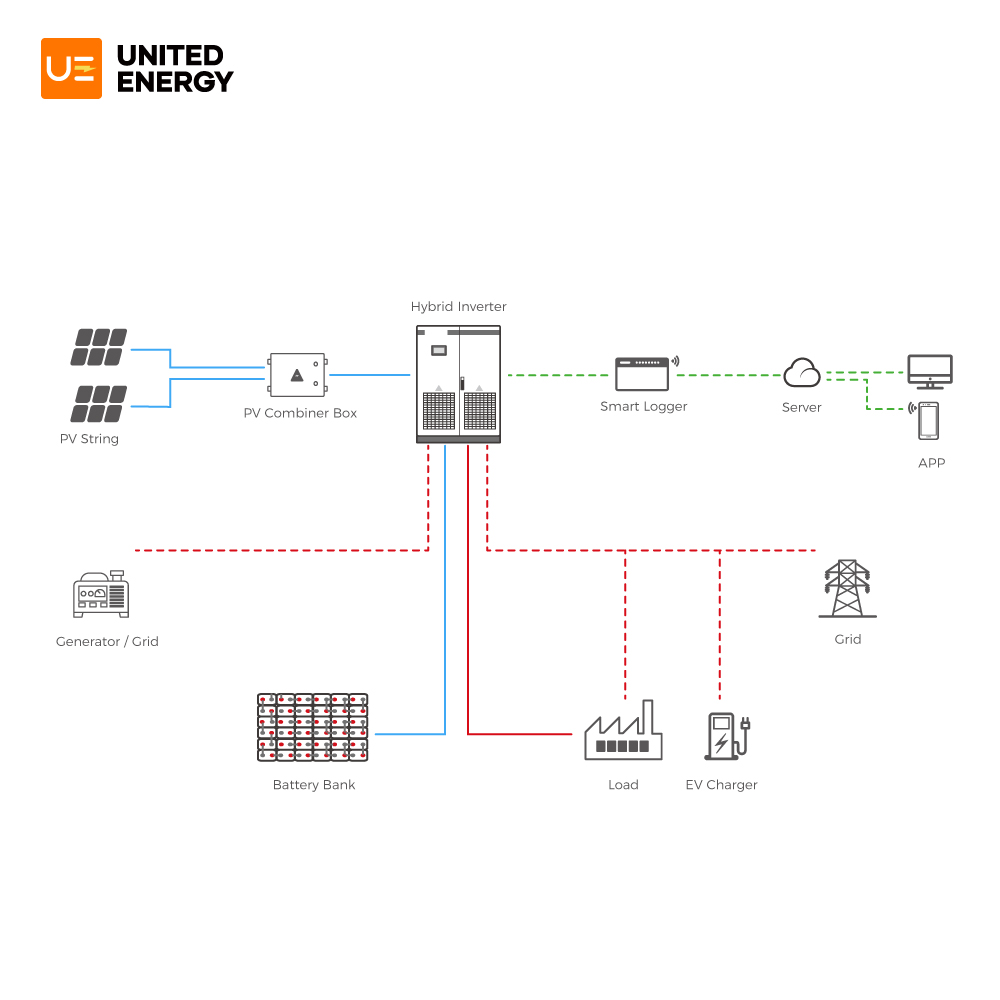

Working Modes

  • Peak Shaving & Valley Filling: Cuts electricity expenses by charging during low-cost periods and discharging during peak hours.
  • Frequency Regulation & Load Balancing: Stabilizes grid fluctuations with rapid charge-discharge adjustments.
  • Backup Power: Provides emergency energy supply during outages.
  • Self-Consumption with Renewables: Increases usage efficiency of solar and wind power.
  • Off-Grid Operation: Supplies independent power where no grid is available.



Applicable Scenarios

  • Businesses with fluctuating electricity prices.
  • Factories with solar/wind power unable to feed energy into the grid.
  • Enterprises requiring stable power in unreliable grid areas.
  • Utility companies managing peak demand and frequency control.



Highlights
✔ Advanced Cooling: Supports liquid and air cooling.
✔ Top-Tier Quality: Uses first-class battery cells and PCS inverters.
✔ Smart Control: Comprehensive monitoring with multiple work modes.
✔ Ultimate Safety: Equipped with fire suppression, cameras, temperature and smoke sensors, and water immersion detection.

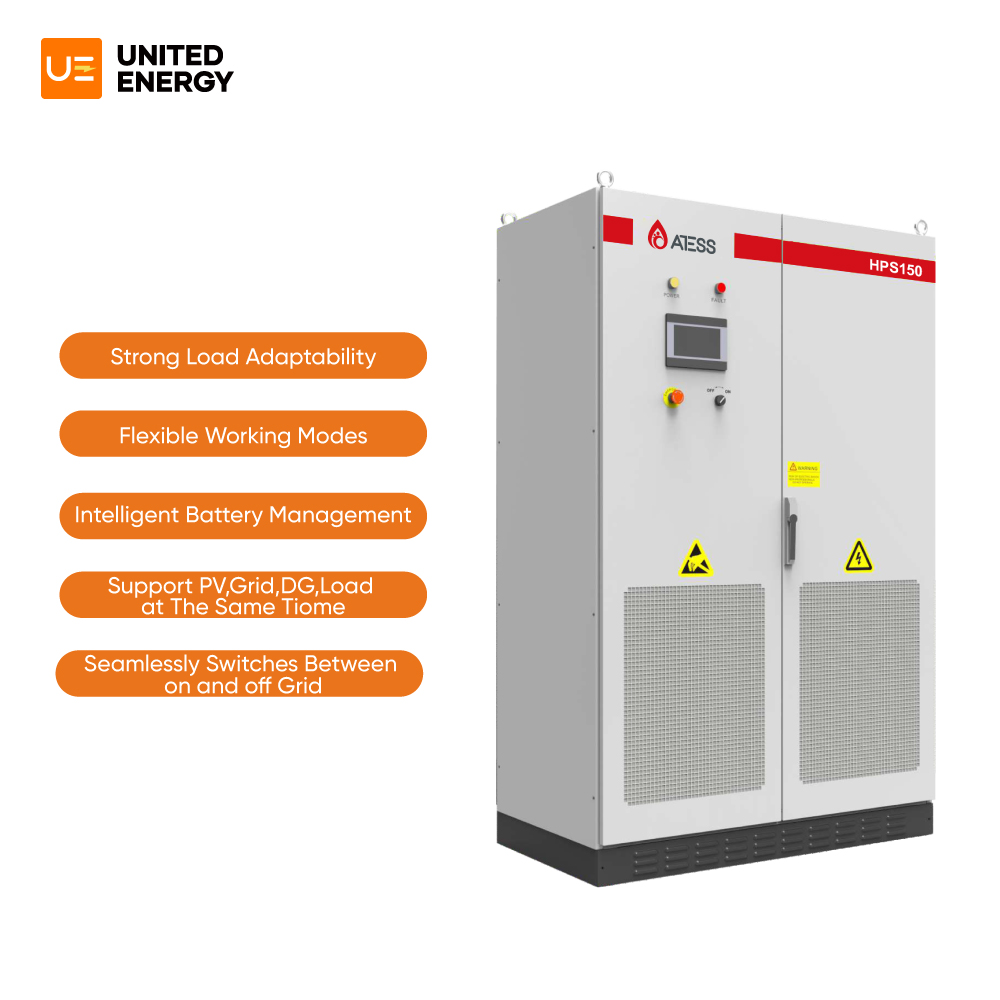

Hybrid Inverter
Model
30kW
50kW
100kW
150kW
Max PV Open-circuit voltage
1000 VDC
1000 VDC
1000 VDC
1000 VDC
Recommended PV power
30kWp
 50kWp
 100kWp
 150kWp
PV MPPT voltage range
 480VDC-800VDC
 480VDC-800VDC
 480VDC-800VDC
 480VDC-800VDC
Recommended nominal battery voltage
420V
Battery voltage range
352-600V*
Max.charge/discharge current
85A
142A
285A
425A
Protection degree
IP20
Environment temperature
-25 °C... +55 °C
Cooling
Forced-air
Maximum altitude
6000m (derate over 3000m)
Dimension (W/H/D)
950/1860/750mm
950/1860/750mm
1200/1900/800mm
1400/1900/800mm
Weight
440kg
620kg
900kg
1250kg
Build-in transformer
Yes
Display
Touch screen
Communication interface
RS485/CAN

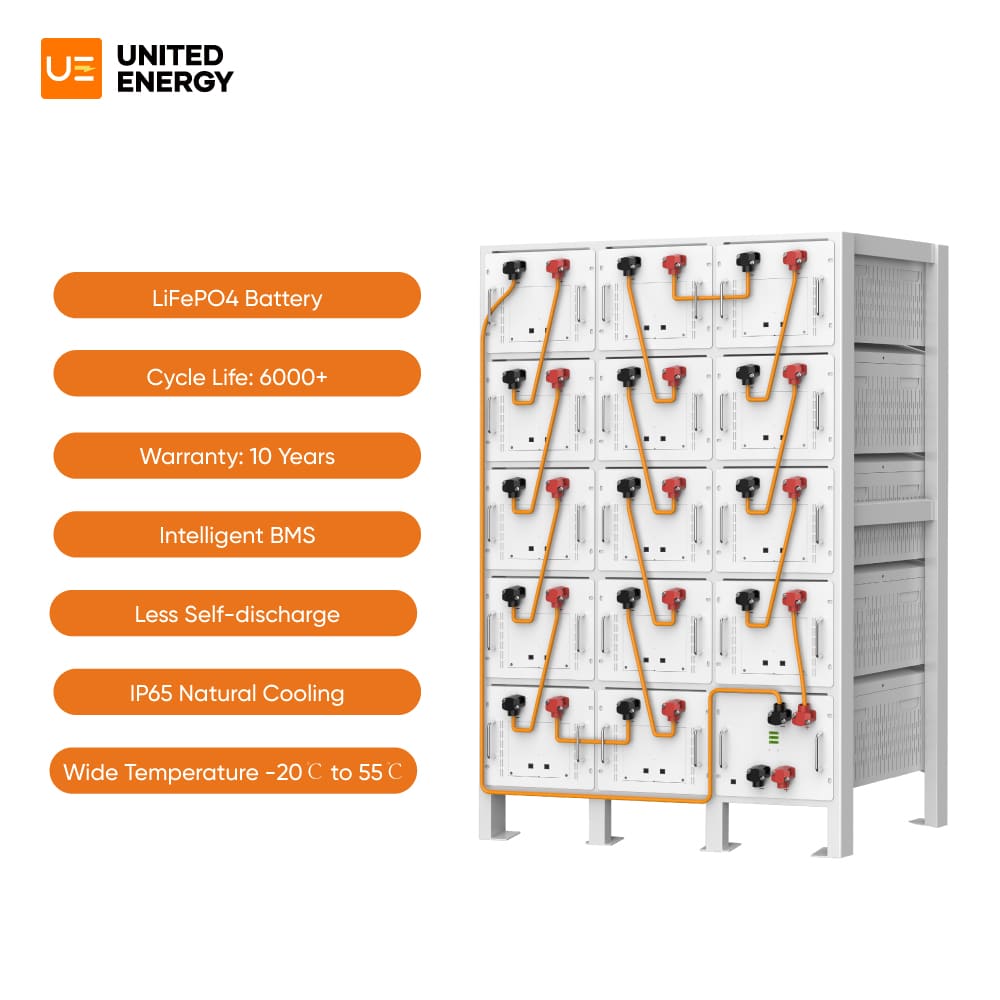

Battery Cluster
Battery Module Specification



Configuration
 1P16S
Rated Capacity
 280Ah
 Rated Energy
14.336kWh
Rated Voltage
 51.2V
 Voltage Range
44.8-56.8V
Rated Charge/Discharge
0.5C
 AC Internal Resistance
 ≤5mΩ
Dimension(W/D/H)
376*885*238.5mm
Weight
 112kg
Depth of Discharge
 90%
Design Life
15+ Years (25°C)
Cycle Life
>6000(25°C)
Battery Rack Specification

Configuration
7 Modules +1 BPU
10 Modules +1 BPU
12 Modules +1 BPU
15 Modules +1 BPU
Rated Capacity
280Ah
Rated Energy
 100.352 kWh
143.36 kWh
172.032 kWh
215.04 kWh
Rated Voltage
 358.4V
512V
 614.4V
768V
Voltage Range
 313.6- 397.6V
448 -568V
537.6- 681.6V
672 -852V
BMS
 Included
Communication
CAN/Modbus RTU/TCP/IP
Dimension(W/D/H)
908*901*1615mm
 908*901*2155mm
Weight
 875kg
1325kg
1575kg
1950kg
Protection
 IP20
Certificate
 CE, UL, UN38.3, IEC62619, MSDS, ROHS





Why Choose Us

United Energy focusing on R&D and manufacture of solar energy systems, meet EU and U.S. regulations, dedicated to making safer and more efficient Solar Energy Solutions.
50%+ of the sales engineers are having 10+ years experience you can always trust UE team since they have developed 5,000+ overseas distributors and Installers from ground up.
FAQ
1, Where is your factory located
United Energy's China manufacturing center in Hefei Anhui, and Wuxi Jiangsu. Vietnam factory in HCM city to convenient US customers without anti-dumping tax
2, Are you a factory or a trading company?
UE is solar panel factory with over 14 years experience, factory inspection is welcome anytime.
3,What solar panel technology are you currently adopting? Available power range?
We currently have PERC, HJT, TOPCON, and shingle technology, power range between 5W-800W.
4,Do you have MOQ?
We do not have MOQ, small order is welcome to test our quality. Fully confident that you will love our quality and service.
5,What's the strength of your company?
1) We are the Top 10 manufacturers in the PV industry, guarantee that each solar panel receives 100% quality inspection, and corresponding test reports can be provided (EL, IV, Flash Test Report) .
2)Owns a team of 30+ engineers who can help you design a complete system solution to help you maximize system efficiency.
